HB 3040167 1500mAh 22.2V Curved Lithium Battery Anti-Puncture
Overview&Features

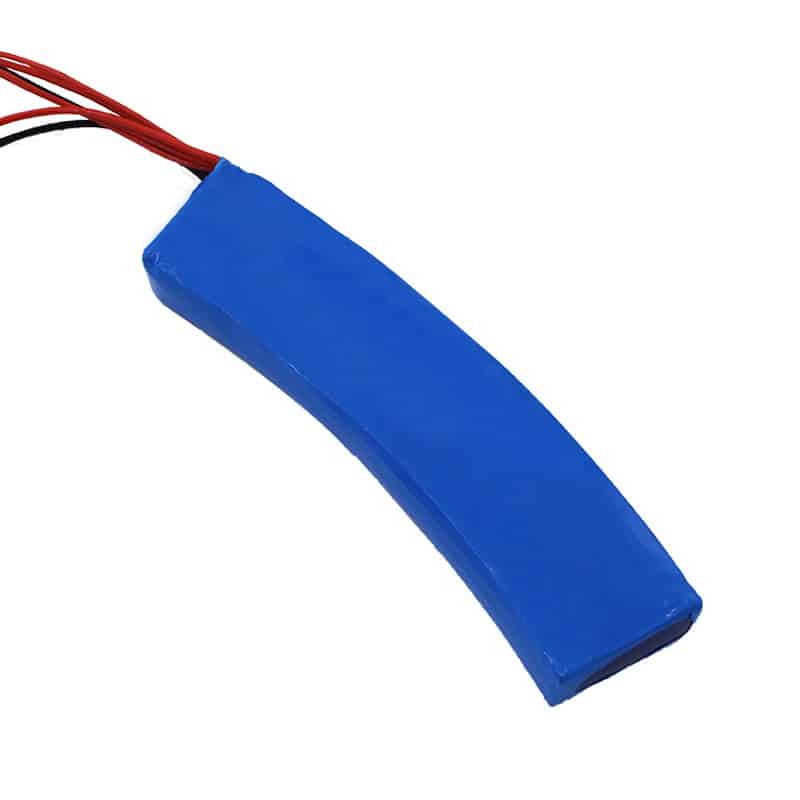

The curved battery is also called the curved battery, a special-shaped one, as shown in the figure below. The arc battery is a kind of lithium polymer battery because the particular colloidal electrolyte of the lithium polymer battery can be shaped, which is why the arc battery can be bent. Arc-shaped batteries have the advantages of high safety, no memory effect, low self-discharge, high voltage, high energy density, and good charge-discharge cycle characteristics.
Get A Quote
Hoppt product’s safety performance is comfirmed to
- UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
- No explode, no fire, no leakage.
- Avoid insolation or dropping into fire.
- Avoid shorting the battery.
- Avoid excessive physical shock or vibration.
- Don’t disassemble or deform the battery.
- Don’t immerse in water.
- Don’t use the battery mixed with other model or manufacturer batteries.
- Battery charge should be used appropriate charger.
Specification
Electrical parameters
| Nominal capacity | 1500mAh |
| Min. Capacity | 1500mAh |
| Cell Initial Impedance | ≤ 150mΩ |
| Cycle life | >300 (at 0.5C discharge) |
| Normal Voltage | 22.2V |
| Initial Voltage | ≥22.8V |
Dimensions
| Battery pack Thickness max. | 21mm |
| Battery pack Width max. | 42mm |
| Battery pack Height max. | 169mm |
| Pack Impedance | ≤200mΩ |
| Cell type | Lithium polymer battery |
Use environment
| Discharge Temperature | 0～ 60℃ |
| Charge Temperature | 5～ 50℃ |
| Limited Charge Voltage | 25.2V |
| Cut-off Voltage | 15V |
| Standard Charging Method | 0.2C CC current charge to 26.1V, then CV charge till current declines to
0.01C |
| Operating humidity Range | ≤ 90%RH |
Guideline
| Standard Charging Current | 0.2C |
| Standard Charging Time | 6~7 hours |
| Rapid Charging Current | 0.5C |
| Rapid Charging Time | 约3.5hours |
| Standard Discharging Current | 0.2C |
| Max. Discharging Current | 1C |
Applications
- Smart Watch
- Portable device
- Wearable device
- Digital products
- Consumer electronics
