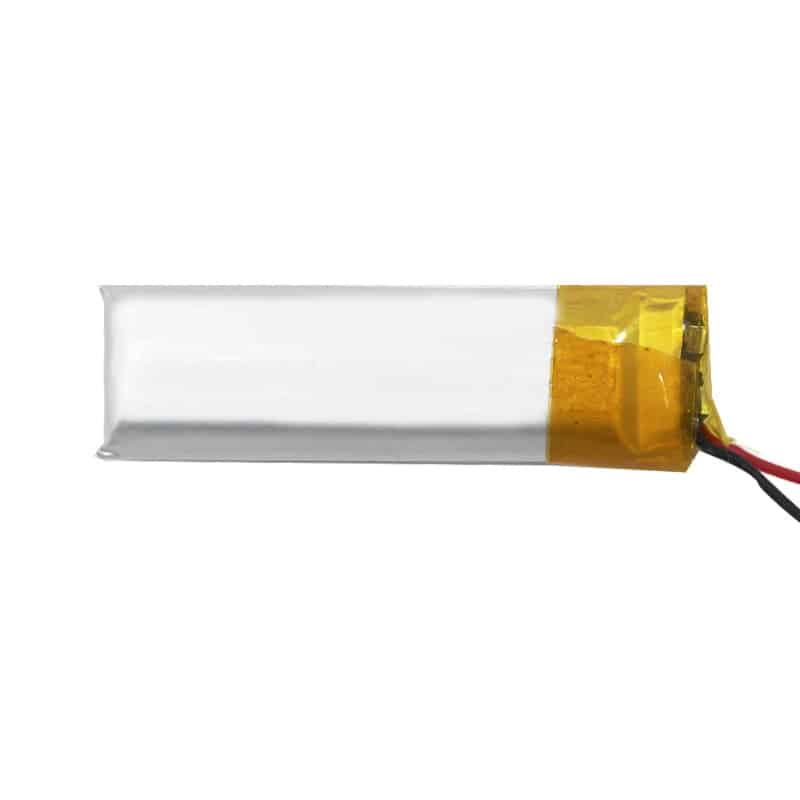

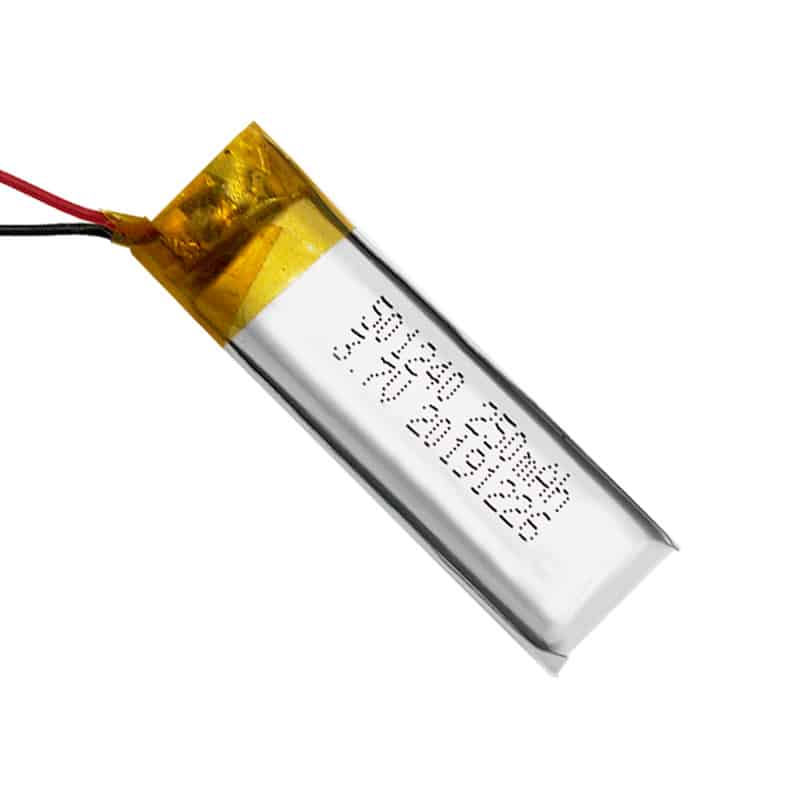

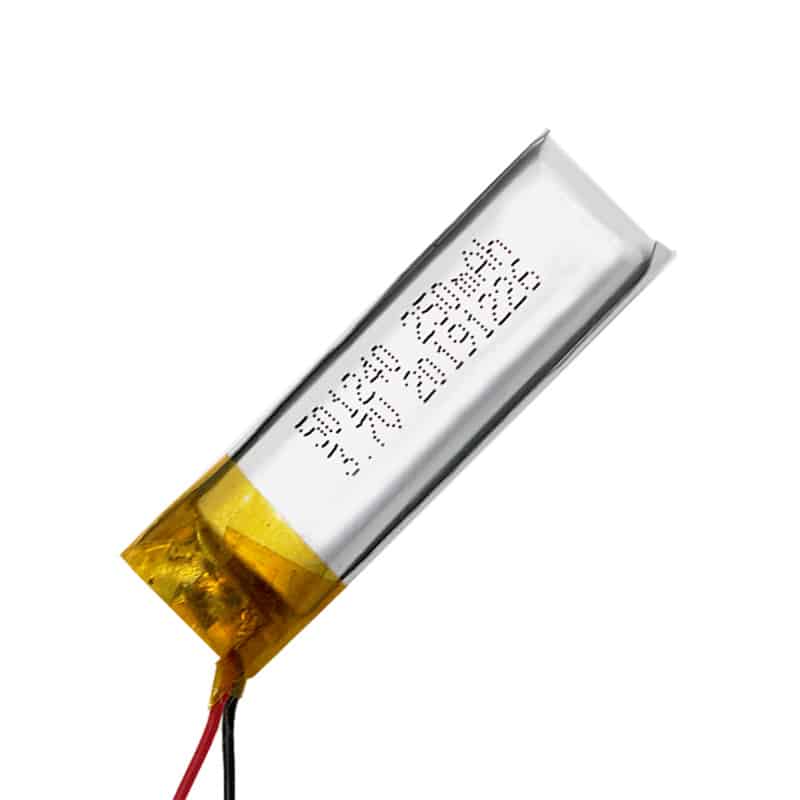

HB 501240 3.7V 250mAh Lithium Polymer Battery
Overview&Features
Lithium polymer battery, or more correctly lithium-ion polymer battery is a rechargeable battery of lithium-ion technology using a polymer electrolyte instead of a liquid electrolyte. High conductivity semisolid (gel) polymers form this electrolyte. These batteries provide higher specific energy than other lithium battery types and are used in applications where weight is a critical feature, such as mobile devices, radio-controlled aircraft and some electric vehicles.
LiPo cells provide manufacturers with compelling advantages. They can easily produce batteries of almost any desired shape. For example, the space and weight requirements of mobile devices and notebook computers can be met. They also have a low self-discharge rate, which is about 5% per month.
Hoppt product’s safety performance is comfirmed to
- UL1642 standard.No leakage, capacity Recovery rate:³ 90% (storage 3h)
- No explode, no fire, no leakage.
- Avoid insolation or dropping into fire.
- Avoid shorting the battery.
- Avoid excessive physical shock or vibration.
- Don’t disassemble or deform the battery.
- Don’t immerse in water.
- Don’t use the battery mixed with other model or manufacturer batteries.
- Battery charge should be used appropriate charger.
Specification
Electrical parameters
| Nominal capacity | 250mAh |
| Min. Capacity | 250mAh |
| Cell Initial Impedance | ≤ 150mΩ |
| Cycle life | >300 (at 0.5C discharge) |
| Normal Voltage | 3.7V |
| Initial Voltage | ≥3.8V |
Dimensions
| Battery pack Thickness max. | 5.5mm |
| Battery pack Width max. | 14mm |
| Battery pack Height max. | 42mm |
| Pack Impedance | ≤200mΩ |
| Cell type | Lithium polymer battery |
Use environment
| Discharge Temperature | 0～ 60℃ |
| Charge Temperature | 5～ 50℃ |
| Limited Charge Voltage | 4.2 V |
| Cut-off Voltage | 2.5V |
| Standard Charging Method | 0.2C CC current charge to 4.35V, then CV charge till current declines to
0.01C |
| Operating humidity Range | ≤ 90%RH |
Guideline
| Standard Charging Current | 0.2C |
| Standard Charging Time | 6~7 hours |
| Rapid Charging Current | 0.5C |
| Rapid Charging Time | about 3.5hours |
| Standard Discharging Current | 0.2C |
| Max. Discharging Current | 1C |
Applications
- Smart Watch
- Portable device
- Wearable device
- Digital products
- Consumer electronics
